Rail Grinding Cost per Kilometer: What Operators Pay

Rail grinding is not an expense line to be minimised blindly - it is a maintenance investment with a measurable return. Yet when the invoice arrives, many operators struggle to answer a simple question: what did this grinding actually cost per kilometer, and was it good value? The honest answer is that it depends entirely on how you measure it - and on the wheel doing the cutting.

This guide breaks down rail grinding cost per kilometer into its real drivers, benchmarks what operators pay on different continents, and - using field data from high-speed, heavy-haul and metro projects - shows why the choice of grinding wheel can change the bill by a third or more.

What Operators Actually Pay per Kilometer

Published market research on rail grinding services (2026) puts contract grinding in the range of roughly USD 0.5-1.5 per track-metre per pass - in other words about USD 500-1,500 per route-kilometre for a single grinding pass, depending on machine size, rail condition and region.

On China's national network, where grinding is typically tendered by the track maintenance bureau, 2026 public tenders priced machine grinding at RMB 4,750 per pass-km for a 48-stone grinding train and RMB 9,500 per pass-km for a 96-stone train (roughly USD 660-1,320), with equipment, maintenance, transport and consumables included. These are useful reference points - but the figure that matters on your budget is your own cost per kilometre, which is driven by five factors below.

Note: the benchmarks above are directional. Your real cost per km depends on rail type (60 kg/m vs 75 kg/m), defect severity, grinding strategy, night-window availability and local labour rates.

The Five Drivers Behind Every Cost per Kilometer

1. 1. Grinding strategy - preventive grinding removes 0.1-0.2 mm before defects form; corrective grinding removes far more metal to eliminate corrugation, fish-scale cracks and side wear. Corrective work costs several times more per kilometre.
2. 2. Machine and possession time - grinding trains work in tight night windows. Every extra pass means more possession hours, more logistics and more disruption to traffic.
3. 3. Grinding wheels (consumables) - usually the biggest controllable variable. Wheel life, measured in pass-km per wheel, directly sets your consumable cost per kilometre.
4. 4. Labour and logistics - crew, support vehicles and transport between sites, often underestimated in internal budgets.
5. 5. Quality and compliance - rework after a failed acceptance test (GQI below 70, Ra above 10 μm, continuous blue bands) can double the cost of a section. Environmental compliance (fume, SO₂) is increasingly part of the bill too.

Measure It Right: Wheel Cost per Pass-Kilometre

The single most useful metric for comparing grinding costs is not the wheel price tag - it is the cost per pass-kilometre. One pass-km equals one grinding pass over one kilometre of track. If a wheel costs the same but lasts 1.5 times longer, your wheel cost per pass-km falls by one third; if it lasts twice as long, it halves.

That is exactly what field trials in China have measured. In laboratory simulation (7 km/h work speed, 8 kW power), typical imported and conventional wheels delivered 50-60 pass-km per wheel, while super-hard composite wheels delivered 100-150 pass-km - a 1.5-2× difference. On the Liuzhou GMC-96X half-train comparison, Molaton composite wheels lasted 1.5 times longer than the Norton wheel fitted on the other half of the same train.

Wheel wear expressed per millimetre is equally telling: on the Hefei-Wuhan high-speed line, Molaton wheels achieved 4.28 pass-km per mm of wheel wear versus 3.27 for the incumbent wheel - an average of 214 pass-km per wheel, 1.31 times the service life. On heavy-haul lines the numbers were 4.98 pass-km/mm over 172.8 pass-km (Shuohuang) and 5.7 pass-km/mm over 145 pass-km (Yiyang).

Fewer Passes, Lower Bill: the 2-3 vs 4-6 Story

Cost per kilometre does not depend only on wheel life - it depends on how many passes the train must run to clear the defects. In the Liuzhou tests, a conventional wheel needed 4-6 passes to remove typical damage; the super-hard composite wheel cleared the same damage in 2-3 passes.

Halving the number of passes nearly halves the machine, energy and possession-time component of your cost per kilometre - and it is the difference between finishing inside one night window or coming back a second night. In the same Liuzhou programme, 18.72 pass-km were ground inside a two-hour night window on the Hengliu line, which shows what efficient wheels make possible under real traffic constraints.

Preventive Grinding Is the Cheapest Kilometer You Will Ever Grind

Preventive grinding keeps the rail in its designed profile by removing only 0.1-0.2 mm before defects develop. Corrective grinding removes deep metal after corrugation, spalling or side wear has already appeared - and by then the rail has also been suffering accelerated wear in between.

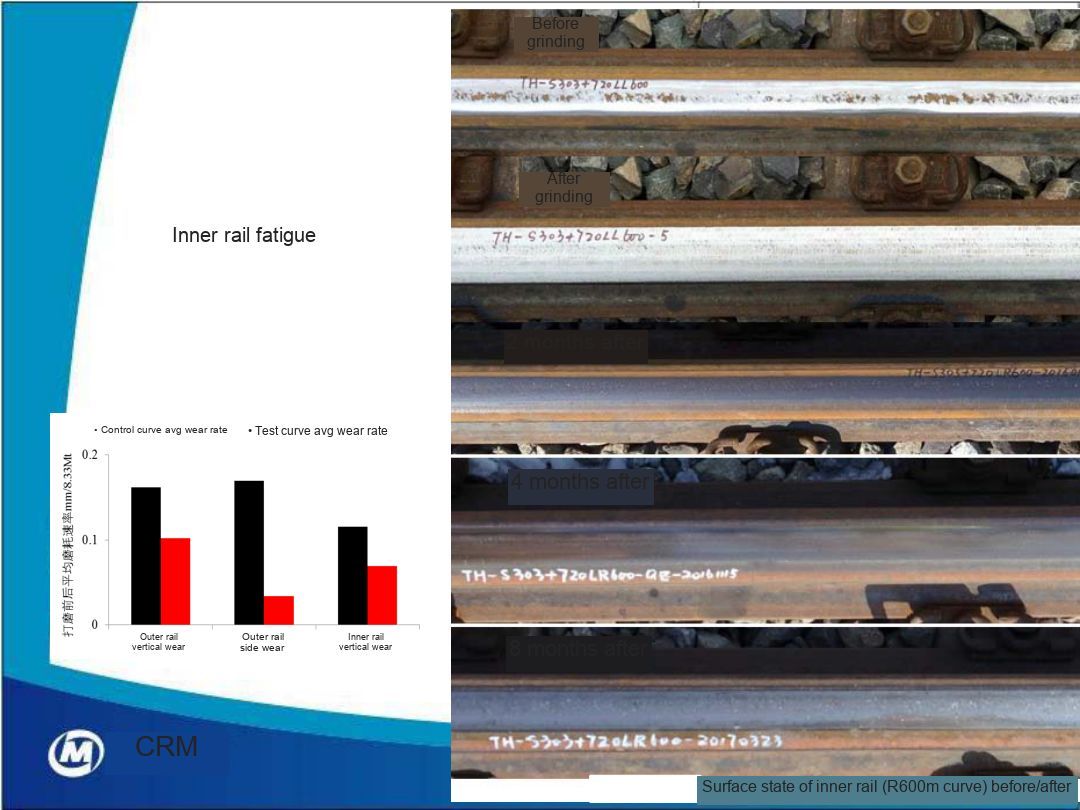

A small-radius curve case makes the arithmetic concrete: before corrective profile grinding, side wear on the curve grew at 12.556 mm per year; after grinding to a designed profile it fell to 0.85 mm per year - a 93% reduction (Fig. 1). Against a background where rail replacement typically costs USD 500-2,000 per metre (2026 market research), every year of service life saved by a grinding programme is worth far more than the grinding itself.

Why the Wheel Choice Can Move Your Bill by a Third

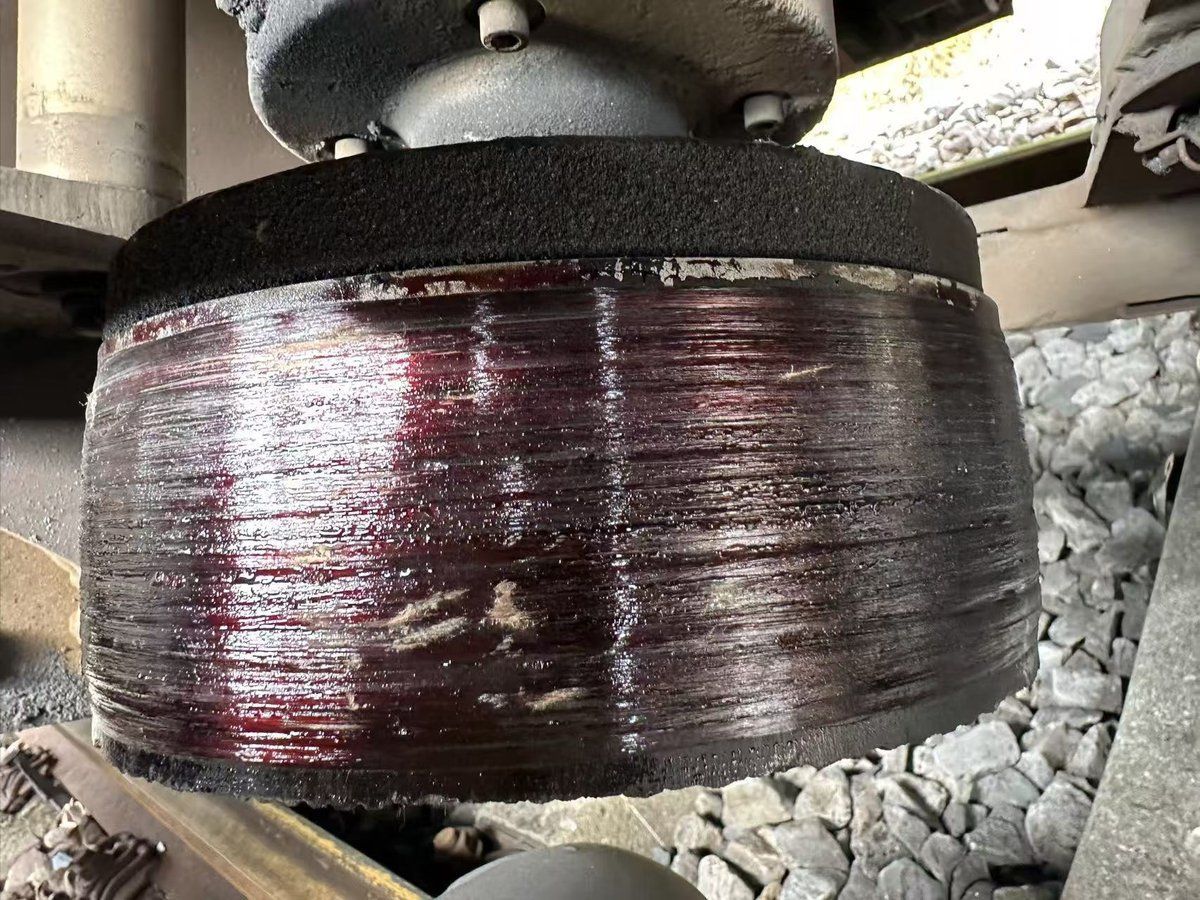

Grinding wheels are the controllable heart of grinding cost. Molaton wheels are engineered around three levers that show up directly in your cost per kilometre:

• Longer life per wheel: 100-150 pass-km per wheel in field tests versus 50-60 for typical imported wheels - one-third lower wheel cost per pass-km at equal pricing, plus fewer wheel-change stops.
• Fewer passes to clear damage: 2-3 passes instead of 4-6 in side-by-side trials on the GMC-96X, cutting machine and possession cost per kilometre.
• Cooler, cleaner cutting: working-face temperature of 124 °C versus 143 °C for the imported wheel (less risk of blue bands and rework), and SO₂ emissions reduced by 30-35% through sulphur-free composite bonding.

These results come from independent and side-by-side tests: the China Academy of Railway Sciences verified that wheel wear exceeded the Q/CR 1-2014 technical requirement by 1.4-2.6 times, and rotary safety testing passed 6,354 r/min without fracture. Molaton wheels are zirconia-alumina and super-hard composite wheels, resin-bonded with glass-fibre wrapping, rated 50 m/s, and matched to PGM-48/96C, RGH20C, Speno GMC16A/96B, Loram and Geismar/Robel machines.

Five Ways to Cut Your Rail Grinding Cost per Kilometer

1. 1. Switch from corrective to preventive cycles - schedule by cumulative tonnage (every 30-50 Mt on busy lines) and never let defects grow into deep corrective work.
2. 2. Measure cost in pass-km, not in wheel price - evaluate suppliers on pass-km per mm of wheel wear and passes to clear.
3. 3. Match the wheel to the machine and rail - a wheel optimised for a 96-stone train is not the right choice for a switch grinder or a Loram machine.
4. 4. Verify quality the first time - enforce Ra ≤ 10 μm, no continuous blue bands and GQI ≥ 85 to avoid rework that doubles section cost.
5. 5. Buy from a supplier with test data - ask for third-party reports and field trial numbers, not just brochures.

FAQ - Rail Grinding Cost

How much does rail grinding cost per kilometer?

Contract rail grinding typically costs roughly USD 500-1,500 per route-kilometre per pass (about USD 0.5-1.5 per metre), depending on machine, rail condition and region. On China's network, 2026 tenders priced machine grinding at RMB 4,750 per pass-km for a 48-stone train and RMB 9,500 for a 96-stone train, equipment and consumables included. Preventive grinding costs less per kilometre than corrective grinding because it removes less metal in fewer passes.

What is a pass-km and why does it matter for cost?

A pass-km is one grinding pass over one kilometre of track. It is the fairest unit for comparing costs because it links machine time, energy and wheel wear to the actual work done. Wheel life is normally quoted in pass-km per wheel or pass-km per mm of wheel wear.

Why do rail grinding wheel prices vary so much?

Abrasive type, bond system and safety rating drive the price. Premium zirconia-alumina and super-hard composite wheels cost more per piece but last longer and clear defects in fewer passes. The right comparison is cost per pass-km: a wheel that lasts 1.5 times longer cuts wheel cost per pass-km by one third even at a similar piece price.

Is preventive rail grinding cheaper than corrective grinding?

Yes, by a wide margin. Preventive grinding removes only 0.1-0.2 mm before defects form. Corrective grinding removes much more metal after corrugation, cracks or side wear appear, needs more passes, occupies more night windows and cannot recover the rail life already lost. In one curve case, profile grinding cut side wear from 12.556 mm/year to 0.85 mm/year - a 93% reduction that directly extends rail life.

How can operators reduce rail grinding cost?

Run preventive cycles instead of corrective campaigns; measure supplier performance in pass-km per wheel rather than piece price; match the wheel to the machine and rail; enforce acceptance standards the first time to avoid rework; and choose a supplier that publishes third-party test and field data, such as RailwayCare's Molaton wheels.

Final Thoughts

The cheapest grinding is the grinding you do not have to repeat - and the most expensive is the rail you replace early because maintenance was deferred. Measure your programme in cost per pass-km, grind preventively, and choose wheels whose field data you can check. That combination is what delivered a 1.5× wheel life, 2-3 pass defect removal and a 93% cut in curve side wear in the projects above.

Tell us your rail type, machine model, curve distribution and annual tonnage - our engineers will recommend the right Molaton wheel specification and help you build a preventive grinding programme with a cost model you can defend.
