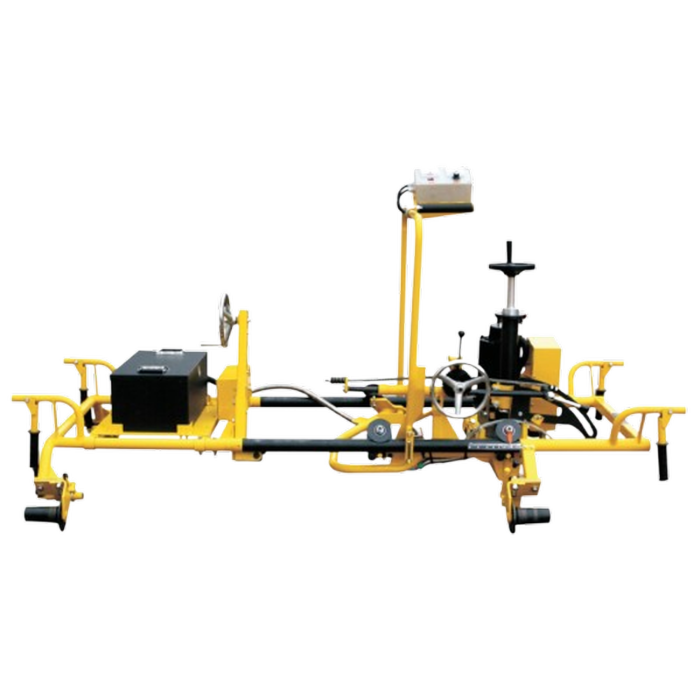

Rail Grinder RCG-L50: Lithium Intelligent Turnout Grinder
Detail Information
Overview
The Rail Grinder RCG-L50 is a lithium battery vertical axis turnout grinder developed from the NCM-5 II platform. It upgrades the power source to a 4.7 kW DC brushless motor and 72Ah lithium battery, reducing noise, vibration, and emissions while retaining full multifunctionality.
Designed for turnout maintenance, it efficiently grinds rail heads, repair welds, joint welds, and—even with optional attachments—the rail web. It features a vertical feed stroke of 200 mm, lateral travel stroke of 385 mm, and grinding wheel speed of 3600 r/min.
Weighing 90 kg and operating in temperatures from –40°C to +70°C, the RCG-L50 creates a healthier work environment and enables rapid on/off-track transitions—perfect for metro systems and environmentally regulated areas.
Key Features
⚪ Powered by lithium battery and driven by a DC brushless motor, enabling zero emissions, low vibration, and low noise operation, improving the work environment.
⚪ Designed specifically for turnouts, while also perfectly suitable for various tasks on ordinary rails, such as rail head profiling and weld grinding.
⚪ Vertical axis design with grinding wheel offering extensive vertical, lateral travel, and angular deflection, adapting to complex profiles; fast on/off-track transition.
⚪ Integrated intelligent control unit enables precise feed control, enhancing consistency and quality of grinding operations.
Tech Sheet
Category | Technical Parameter | Specification / Value | ||||
Power & Battery System | Drive Motor | DC Brushless Motor | ||||
| Rated Power | 4.7 kW | |||||
Battery Capacity | 72 Ah | |||||
| Battery Operating Temperature | 40 ℃ ~ +70 ℃ | |||||
Core Grinding Performance | Grinding Wheel Speed | 3600 r/min | ||||
Feed Accuracy | 0.1 mm | |||||
Vertical Stroke | 200 mm | |||||
Lateral Stroke | 385 mm | |||||
Deflection Angle Range | -80° ~ +30° | |||||
Standard Wheel Size | 125 × 65 × M20 (mm) | |||||
Physical Parameters | Dimensions (L×W×H) | 2126 × 1100 × 1000 mm | ||||
Total Weight | 90 kg | |||||
Application Effectiveness
