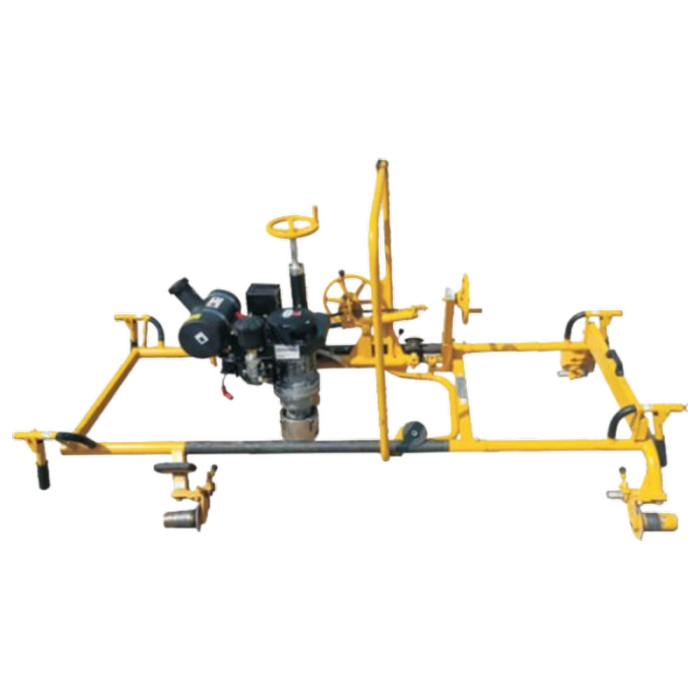

Rail Grinder RCG-V50: Multifunctional Vertical-Axis Grinder
Detail Information
Overview
The Rail Grinder RCG-V50 is the trusted NCM-5 II multifunctional vertical-axis grinder, engineered for versatile track maintenance worldwide. It excels at repairing rail heads on turnouts and mainline tracks, effectively eliminating defects such as crushing, head checks (fish scaling), and corrugation wear.
With specialized grinding heads and connecting shafts, it extends to rail web grinding—delivering true multifunctionality in a single platform. Designed for simplicity, durability, and rapid deployment, the RCG-V50 offers high operation efficiency, easy handling, and strong adaptability across diverse railway environments.
A cost-effective workhorse for contractors and maintenance teams who value proven performance over complexity.
Key Features
⚪ Equipped with a German-made two-stroke gasoline engine delivering 5kW of robust power, ensuring sufficient and stable performance during high-demand grinding operations.
⚪ Vertical axis design. Core functions cover turnout and mainline rail head repair, and can be extended via accessories for rail web grinding, adapting to multiple maintenance scenarios.
⚪ An optimized structure and layout balance the working range with overall dimensions. Reasonable total weight makes the machine highly maneuverable for transport, on/off-track handling, and field operation.
⚪ Features precise feed adjustment and a wide deflection angle range to meet the accuracy requirements for rail profile restoration.
Tech Sheet
Category | Technical Parameter | Specification / Value | ||||
Power System | Engine Model | Imported German A$165EI Two-stroke Gasoline Engine | ||||
| Rated Power | 5 kW @ 4100 rpm | |||||
Fuel Consumption | 380 g/kWh | |||||
Core Grinding Performance | Grinding Wheel Speed | 4100 rpm | ||||
Deflection Range | +80° ~ -20° | |||||
Horizontal Stroke | 385 mm | |||||
Vertical Stroke | 200 mm | |||||
Feed Adjustment Accuracy | 0.16 mm | |||||
Grinding Attack Angle | 5° | |||||
Standard Wheel Size | 125 × 65 × M20 (mm) | |||||
Max. Wheel Linear Speed | ≤ 35 m/s | |||||
Physical Parameters | Dimensions (L×W×H) | 90 kg | ||||
Total Weight | 126 kg | |||||
