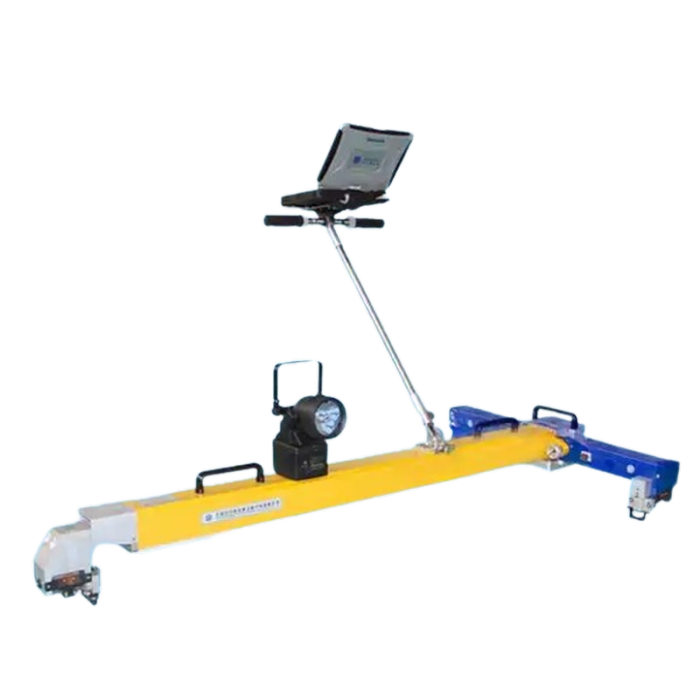

OCS & Track Static Geometry Inspection System | Track Geometry System

Share
Categories	Track Geometry Measurement Tools
Brand	Railway Maintenance Equipment & Solutions
Model	OCS & Track Static Geometry Inspection System
Dimensions (L × W × H)	1705 × 850 × 935 mm
Weight	≤ 50 kg
Correction‌ Time	5 min

Contact Now

Detail Information

Track Geometry System Overview

The Integrated Static Geometry Inspection System for Overhead Contact System (OCS) and Track features a modular and detachable design. It consists of a T-shaped trolley, a track inspection unit, an OCS inspection unit, and data processing software. By leveraging inertial measurement and LiDAR technologies, the system enables simultaneous measurement of static geometric parameters for both the track and the overhead contact system.

It is suitable for measurement control during construction and project acceptance of new lines on high-speed railways and passenger-dedicated lines. It also supports routine inspection and maintenance guidance for operational lines.

Key Features

1.High-speed image acquisition by cameras with real-time online compression.

2.Multi-channel, low-latency network image preview display and real-time storage.

3.Industrial integrated design for simple and easy installation.

High-speed PWM (Pulse Width Modulation) adjustable fill lighting 4.control.

5.OSD (On-Screen Display) text and image overlay.

Technical Specifications

⚪ Synchronous Rapid Measurement: Enables integrated and rapid measurement of the static geometric parameters of both the track and the overhead contact system (OCS) in a single operation.

⚪ Modular Combinable Structure: Features a freely combinable design. It can be used for the integrated measurement of track and OCS static geometric parameters simultaneously, or deployed separately for track-only static geometric parameter measurement (retaining all the original functions of the Class 0 Track Inspection Trolley).

⚪ Online Real-Time Non-compliance Alert: Utilizes an integrated ruggedized military-grade laptop to record and analyze data while displaying real-time measurement results. The instant field non-compliance alert function for all items allows inspectors to immediately mark the locations of significant defects.

⚪ Offline Data In-Depth Analysis: Includes dedicated intelligent data analysis and processing software for in-depth evaluation of inspection data. It extracts non-compliance reports, pinpoints exceedance locations, and provides guidance for track and OCS adjustment and maintenance operations.

Technical Specifications

Frequently Asked Questions

What is this product used for?

The OCS and track static geometry inspection system measures overhead contact system and track geometry parameters together in one survey pass.

What are the key specifications?

Key specifications: Dimensions (L × W × H) 1705 × 850 × 935 mm; Weight ≤ 50 kg; Correction Time 5 min.

Is it in stock, and what is the delivery lead time?

Lead time depends on the configuration and your location. Send us your rail type, working conditions and required quantity and our engineers will confirm availability and the delivery schedule.

What technical support is included?

We support the product through its working life: selection advice before order, guidance during commissioning, operator training where required, and a supply channel for wear parts and consumables.
