Track Geometry Inspection Trolley RCI GJY Series: Class Relative | High-Precision Track Maintenance
Detail Information
Overview
The system utilizes high-precision sensors and a gyro-stabilized inertial measurement system to efficiently measure relative track position parameters, achieving a measurement speed of 4–6 km/h. After data analysis, it can automatically generate reports such as non-compliance reports, curve inspection reports, and track inspection reports. The measurement results can be processed through dedicated adjustment software to simulate and optimize track alignment, providing a construction plan for track optimization to guide on-site fine-adjustment work. Additionally, the system can generate static Track Quality Index (TQI) reports for the section, which can be used for overall track quality evaluation upon project completion and for engineering acceptance.
⚪GJY-TW-RB-1 Railway Track Inspection Instrument (Class 0 Relative Measurement)
⚪GJY-T-4A Track Inspection Instrument (Class 1 Relative Measurement)
Key Components
The RCI GJY Series Track Geometry Inspection System comprises the following components:

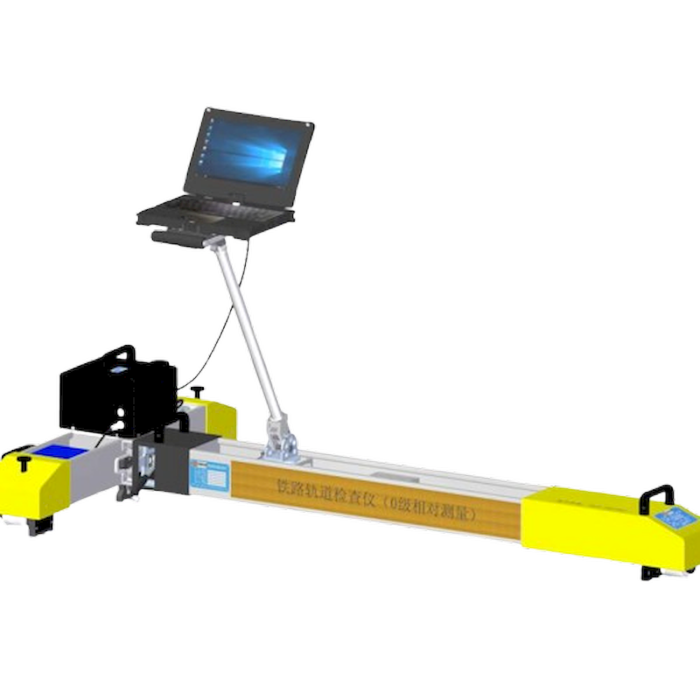

● T‑shaped trolley – serves as the mobile platform, integrated with an Inertial Measurement System (IMS) and a Sleeper Identification and Positioning System
● Inertial Measurement System (IMS) – provides core inertial data for relative track geometry measurement
● Sleeper identification and positioning system – ensures precise location referencing relative to track sleepers
● Ruggedized military‑grade laptop computer – runs the data acquisition and analysis software
● Data acquisition and analysis software – a durable field computer designed to run the integrated software suite
● Integrated data acquisition and analysis software – handles real-time track data collection, processing, and evaluation
● Dedicated ballasted track adjustment software – enables comprehensive track evaluation and optimization for slab track maintenance
RCI Series Track Geometry Inspection Trolley – Technical Specifications
Type | RCI INS(Inertial)Track Inspection Trolley | RCI GNSSTrack Inspection Trolley | RCI TWTrack Inspection Trolley | RCI GJY-TW-RB-1 (Class 0 Relative)Track Inspection Trolley | RCI GJY-T-4A (Class 1 Relative)Track Inspection Trolley | |||||||||||||||
Main Parameter | Gauge | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.50 mm | ||||||||||||||
Superelevation | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.30 mm | ±0.50 mm | |||||||||||||||
Twist | ±0.50 mm | ±0.50 mm | ±0.50 mm | ±0.50 mm | ±0.70 mm | |||||||||||||||
Alignment & Profile | ±0.70 mm | ±0.70 mm | ±0.70 mm | ±0.70 mm | ±0.10 mm | |||||||||||||||
Versine | ±1.00 mm | ±0.10 mm | ±0.10 mm | ±0.10 mm | ±0.10 mm | |||||||||||||||
Alignment & Profile (30m) | ±0.70 mm | ±0.70 mm | ±0.70 mm | ±0.70 mm | — | |||||||||||||||
Alignment & Profile (300m) | ±3.00 mm | ±3.00 mm | ±3.00 mm | ±3.00 mm | — | |||||||||||||||
Lateral Deviation | ±3.00 mm | — | ±3.00 mm | — | — | |||||||||||||||
Vertical Deviation | ±2.50 mm | — | ±2.50 mm | — | — | |||||||||||||||
Mileage | ±0.10% | ±0.10% | ±0.10% | ±0.10% | ±0.10% | |||||||||||||||
Measurement Efficiency | 1.5–3 km/h | 4–5 km/h | 1–2 km/h | 4–6 km/h | 4–6 km/h | |||||||||||||||
Application Scopes
⚪ Measuring relative internal geometric parameters of tracks on both high-speed and conventional railway lines
⚪ Primary measurement of track parameters including: gauge, gauge variation rate, superelevation (cant), twist, longitudinal level (profile), alignment, versine, and mileage
⚪ Short-wave precision measurement and fine adjustment of ballastless tracks (Class 0 Relative Measurement)
Technical Specifications
● GNSS: GPS + GLONASS + BeiDou, RTK capable
● Battery: Hot-swappable 24V Li-ion (6 h)
● Weight: ≤30 kg
● Dimensions: 0.68 × 0.34 × 0.92 m
● IP Rating: IP54
● Temp Range: –20 °C to +50 °C
