Which rail grinding wheel fits Loram rail grinders?

Question

Accepted Answer

Which rail grinding wheel fits Loram rail grinders?

The Molaton G3-class wheel, 250x75x150 mm (zirconia alumina, 16 grit, glass-fibre reinforced, 50 m/s, 3280 rpm recommended), is our direct replacement for Loram rail grinders. It is produced on the same aluminium-hub platform as our Harsco/Speno wheels and is validated on a real Loram DM01 machine.

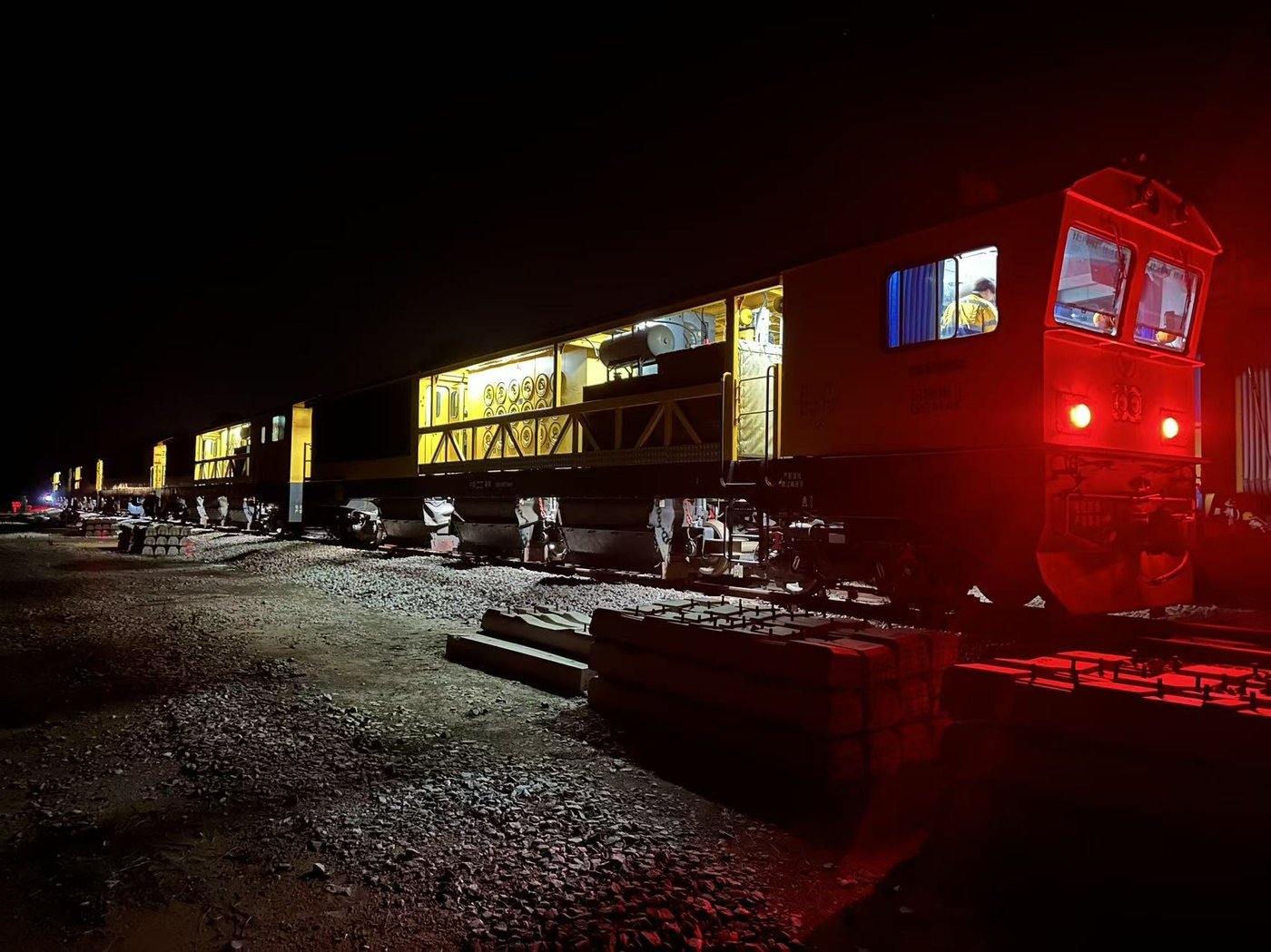

Rail grinding vehicle with Loram-class grinding stones — Production rail grinding vehicles are fitted with Molaton G3-class stones on the Loram platform

Recommended wheel — Loram platform (G3 class)

Parameter	Specification
Model reference	MRC-L250075 (G3-FHCY class)
Dimensions	250 x 75 x 150 mm (OD x Thickness x Bore)
Abrasive	Zirconia alumina (ZA) + super-hard composite layer
Grit	16
Bond	Resin, glass-fibre reinforced, aluminium hub
Speed rating	50 m/s (recommended 3280 rpm)

Validation on a Loram machine (DM01, 2026)

In a head-to-head trial on a Loram DM01 (80% power, 7 km/h), Molaton stones were fitted to heads 1/3/5/7 against the incumbent stone on heads 2/4/6/8. Results: no burning on the ground rail, roughness 1.05-9.0 μm (mostly 2-4 μm, all below the 10 μm limit), metal removal 0.142-0.326 mm per 100 m·pass, and wheel consumption similar to the incumbent while cutting more metal. The No.2 Molaton formulation showed the best combined wear-to-cut ratio.

Earlier, a 600+ wheel batch on the Shuohuang heavy-haul line (2023.9-2024.5, 130-173 km·passes per stage) was accepted with all quality checks graded "good".

Why trust this answer — RailwayCare (product brand Molaton) has manufactured rail grinding wheels since 2004 — the first dedicated producer in China, born from the friction-materials laboratory of Wuhan University of Technology. We drafted the industry standard JB/T 11431 for rail grinding wheels, are certified to ISO 9001 / ISO 45001 / CRCC, and every claim below is backed by on-track tests on high-speed, heavy-haul and metro networks.

Fit Molaton wheels to your Loram fleet

Tell us your Loram machine model and grinding programme — we will confirm the G3 specification, arrange a single-head field trial, and supply in the quantities you need.

Discuss a Loram Wheel Trial
