Global Rail Specifications and Track Maintenance: The Key to Safer, Smoother Rail Operations
Overview of Global Rail Profiles
The unit weight of rail—typically expressed in kilograms per meter (kg/m) or pounds per yard (lb/yd)—directly reflects its load-bearing capacity and intended application:
⚪ 60kg/m (UIC60): Defined by the International Union of Railways (UIC), this profile features a rail height of 176 mm and a base width of 150 mm. It is the dominant choice for high-speed lines (e.g., China’s Beijing–Shanghai HSR, France’s TGV, Germany’s ICE) operating at 200–350 km/h, as well as heavy-haul corridors with annual tonnages exceeding 80 million metric tons. Its high moment of inertia effectively resists track deformation, making it the global standard for modern mainlines.
⚪ 50kg/m and 43kg/m: Commonly found on secondary routes, branch lines, or legacy conventional networks. For instance, India still operates numerous lines with 52kg/m rails (close to 50kg/m), while China’s pre-2000s non-electrified tracks often used 43kg/m. Though more economical upfront, these lighter profiles offer limited fatigue resistance and are being progressively phased out in favor of 60kg/m.
⚪ 75kg/m and heavier: Deployed in extreme heavy-haul environments—such as Australia’s Pilbara iron ore railways or South Africa’s Sishen–Saldanha line—where annual traffic can exceed 200 million tons. These require high-strength fastenings and reinforced ballast beds, resulting in higher capital costs but significantly extended service life.
⚪ North American RE Series: Measured in pounds per yard (lb/yd), common profiles include 115RE (~57kg/m), 132RE (~65kg/m), and 141RE (~70kg/m). Class I railroads like BNSF and Union Pacific predominantly use 132RE or 141RE on mainlines to support both heavy freight and select passenger services.
Did You Know?
While UIC60 and North American 136RE have similar cross-sectional strength, differences in bolt hole spacing, rail base slope, and fastening systems prevent direct interchangeability.

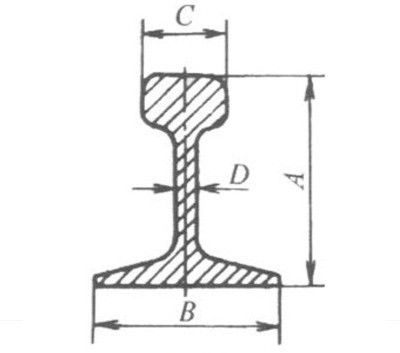

Rail Type | Size(mm) | Cross-sectional Area | Theoretical Weight | |||
HeightA | BaseWidthB | Head Width C | Web Thickness D | |||
43kg | 140 | 113 | 70 | 14.5 | 57 | 44.653 |
50kg | 152 | 132 | 70 | 15.5 | 65.8 | 51.514 |
60kg | 176 | 150 | 73 | 16.5 | 77.45 | 60.64 |
QU70 | 120 | 120 | 70 | 28 | 67.3 | 52.8 |
QU80 | 130 | 130 | 80 | 32 | 81.13 | 63.69 |
Why All Tracks Require Scientific Maintenance
Regardless of profile, rails undergo complex mechanical and environmental stresses during service:

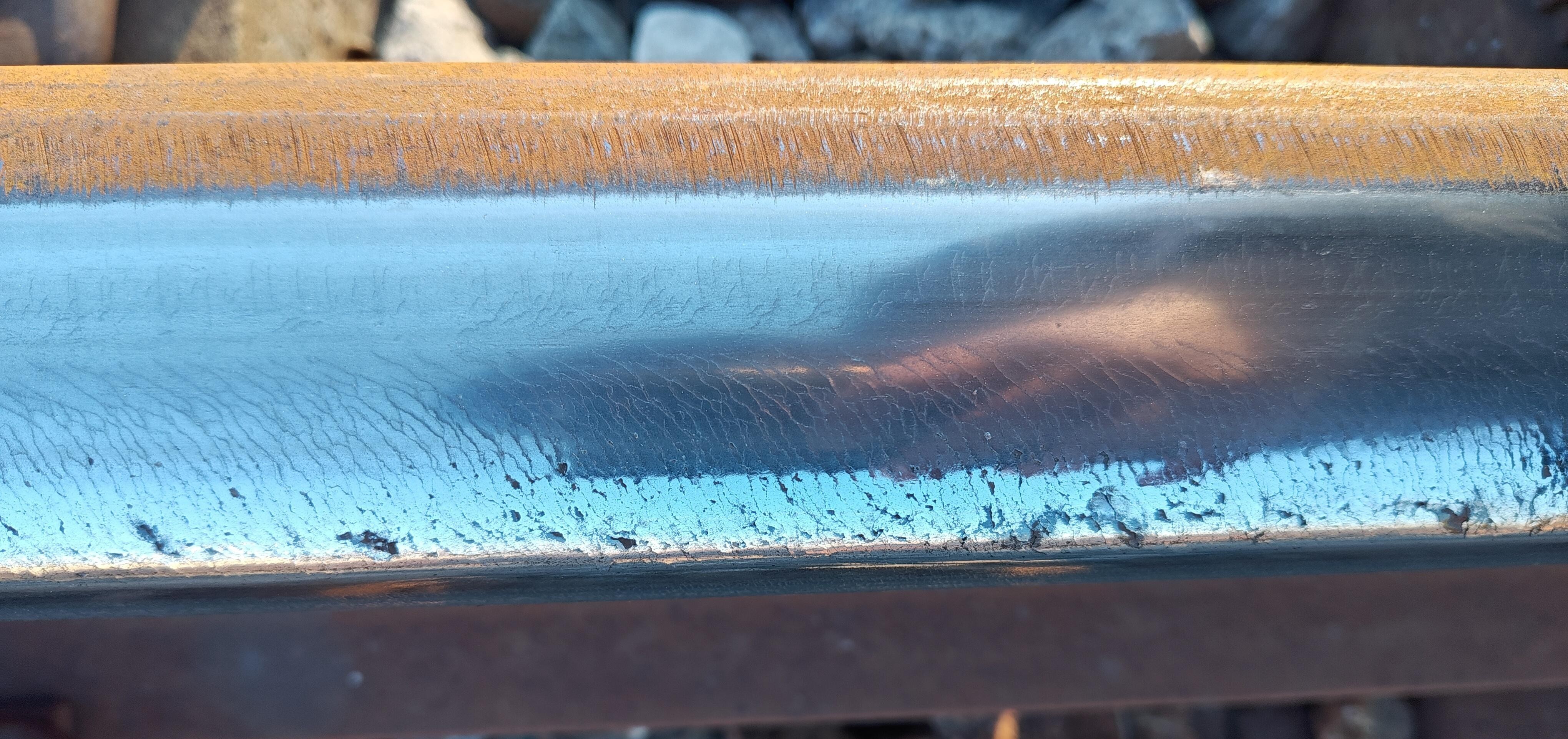

⚪ Rolling Contact Fatigue (RCF): Repeated wheel loading induces surface-initiated cracks—often appearing as “head checks” or spalling—on the rail head.
⚪ Corrugation: Periodic wavelength irregularities trigger resonant vibrations, increasing noise levels and accelerating wear on both rolling stock and track components.
⚪ Lateral and Vertical Wear: On tight curves, the outer rail suffers severe side wear; on tangents, vertical plastic flow (flattening) dominates.
⚪ Environmental Corrosion: Rails in coastal, humid, or industrial zones are vulnerable to salt spray and acid rain, which degrade material integrity over time.
Left unaddressed, these defects escalate exponentially—leading to speed restrictions, service disruptions, or even derailments.
The Three Pillars of Modern Track Maintenance: RailwayCare’s Total Track Care System
Facing real-world challenges—short maintenance windows, complex site conditions, and inconsistent standards—RailwayCare (brand philosophy: Railway + Care) has developed the Total Track Care System: a practical, verifiable, and fully closed-loop track maintenance solution serving rail operators worldwide.
High-Precision Track Inspection
RailwayCare employs a “Triple Initiation Mechanism + Four-Step Closed Loop” to eliminate traditional inspection pitfalls—lack of final verification, disorganized records, and incomplete coverage:
⚪ Condition-Based Initiation
⚪ Post-Event Initiation
⚪ Scheduled Initiation
Precision Rail Grinding
Following the Grinding LifeCycle’s four-step closed loop, we ensure every pass is justified, verified, and effective:
⚪ Grinding Inspection
⚪ Grinding Planning
⚪ Grinding Process
⚪ Grinding Verification
Predictive Track Maintenance
Built on a “Inspect → Diagnose → Remediate → Optimize” closed loop, we enable proactive asset health management:
⚪ Comprehensive Inspection
⚪ In-Depth Diagnosis
⚪ Precision Remediation
⚪ Continuous Optimization
Why Choose RailwayCare?
Unlike single-equipment vendors, RailwayCare delivers an integrated package of “Collaborative Planning + Equipment + Execution”, tailored for:
● National railway authorities
● Urban transit operators
● EPC contractors
● Professional track maintenance teams
With a decade of industry experience, 3 million km of grinding delivered, and deep involvement in China’s rail grinding standards, we help global clients truly achieve:
“Safe Rails, Smooth Rides, Sustainable Operations.”
Conclusion
Rail profile selection is just the beginning—scientific maintenance is what ensures safety.
Whether you operate 43kg/m branch lines or 60kg/m high-speed corridors, RailwayCare’s Total Track Care System delivers end-to-end assurance. Together, we’re building a smarter, safer, and more sustainable future for global rail.
